175W Victron Mono Solar Panel 1485x668x30mm Series 4A - To Fit Small Spaces On Vans And Boats
175W Victron Mono Solar Panel 1485x668x30mm Series 4A - To Fit Small Spaces On Vans And Boats
Details
175W Victron Mono Solar Panel 1485x668x30mm Series 4A - To Fit Small Spaces On Vans And Boats

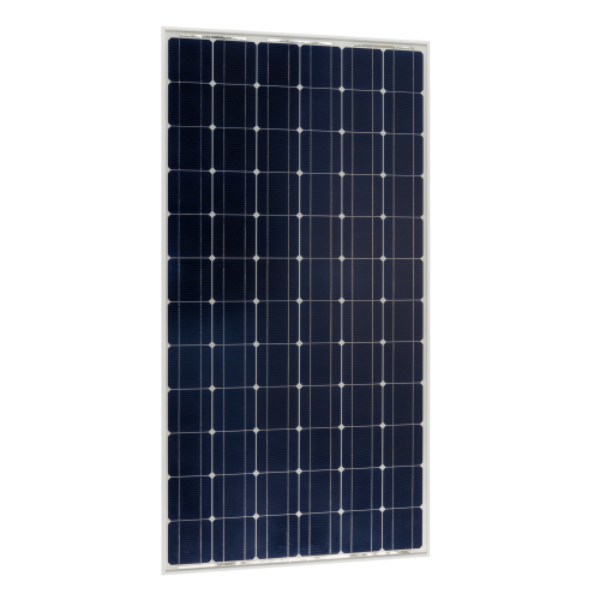

Victron Solar 175W Mono panel 1485 x 668 x 30mm
• Low voltage-temperature coefficient enhances high temperature operation.
• Exceptional low light performance and high sensitivity to light across the entire solar spectrum.
• 25 - Year limited warranty on power output and performance.
• 5 - Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimise the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre wired quick connect system with PV-ST01 connectors.
Specifications
| Solar Panel | |
| Watts | 175 |
| Maximum Power Voltage - Vmpp(V) | 19.4 |
| Maximum Power Current - Impp(A) | 9.03 |
| Open Circuit Voltage - Voc(V) | 23.7 |
| Short Circuit Current - Isc (A) | 9.89 |
| Height (mm) | 1485 |
| Width (mm) | 668 |
| Thickness (mm) | 30 |
| Weight (KG) | 11 |
| Cell Type | Mono |
Datasheet
Couldn't load pickup availability
175W Victron Mono Solar Panel 1485x668x30mm Series 4A - To Fit Small Spaces On Vans And Boats
175W Victron Mono Solar Panel 1485x668x30mm Series 4A - To Fit Small Spaces On Vans And Boats
Details
175W Victron Mono Solar Panel 1485x668x30mm Series 4A - To Fit Small Spaces On Vans And Boats
Victron Solar 175W Mono panel 1485 x 668 x 30mm
• Low voltage-temperature coefficient enhances high temperature operation.
• Exceptional low light performance and high sensitivity to light across the entire solar spectrum.
• 25 - Year limited warranty on power output and performance.
• 5 - Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimise the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre wired quick connect system with PV-ST01 connectors.
Specifications
| Solar Panel | |
| Watts | 175 |
| Maximum Power Voltage - Vmpp(V) | 19.4 |
| Maximum Power Current - Impp(A) | 9.03 |
| Open Circuit Voltage - Voc(V) | 23.7 |
| Short Circuit Current - Isc (A) | 9.89 |
| Height (mm) | 1485 |
| Width (mm) | 668 |
| Thickness (mm) | 30 |
| Weight (KG) | 11 |
| Cell Type | Mono |
Datasheet
Couldn't load pickup availability
Call us for free advice
If you have any questions about which panels or products are best for your project or if you want help with picking the mounting system you need, call us on 0800 0016 802 or email us.
