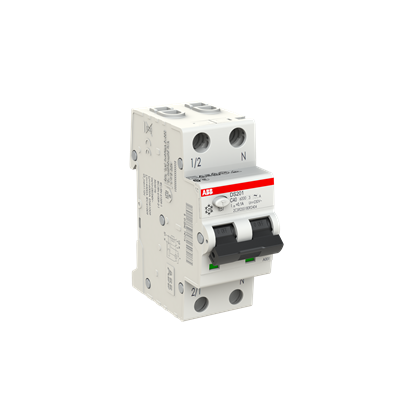

ABB 40A 100mA Type-A Single-Pole RCBO | DS201 C40 A100
ABB 40A 100mA Type-A Single-Pole RCBO | DS201 C40 A100
Details
Protect the electrical circuits in your solar installation with this ABB residual current circuit breaker with overcurrent protection. An RCBO mainly protects circuits against earth fault currents, overload, and short circuit currents. This model is for use in single-phase systems with a type-A residual current.
Key features:
- Residual current circuit breaker with overcurrent protection (RCBO)
- Type-A residual current
- Number of poles: 1P+N
- Test voltage: 110...264V
- Dielectric test voltage: 2kV
- Rated ultimate short-circuit breaking capacity (Icu): 10kA
- Rated residual breaking capacity (IΔm): EN 61009-1 6000A / IEC 61009-1 4500A
- Rated service short-circuit breaking capacity (Ics): 7.5kA
- Rated current: 40A
- Rated residual current: 100mA
- Rated short-circuit capacity: 6kA
- Ingress protection: IP20 / IP40
- Dimensions: 85mm (H) x 35mm (W) x 69mm (D)
- Weight: 200g
Datasheet
