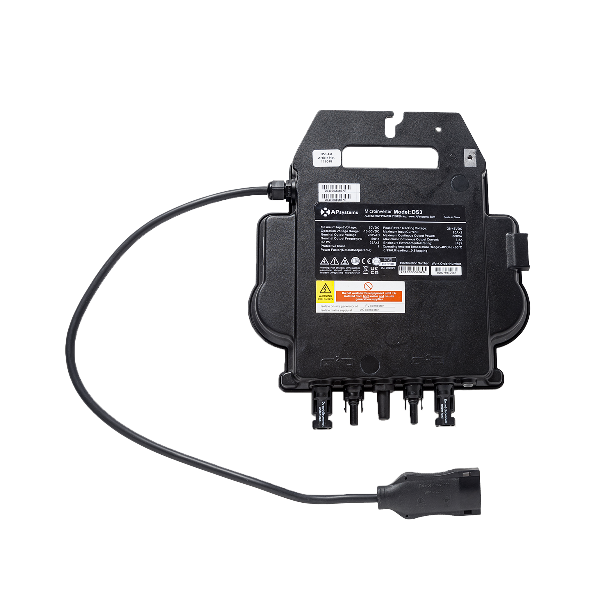

APsystems DS3 880VA Dual Single-Phase Microinverter | 117018
APsystems DS3 880VA Dual Single-Phase Microinverter | 117018
Details
Specially developed to handle today's high-power solar panel modules, each APsystems DS3 dual microinverter can connect to two individual panels. Microinverters are designed to connect directly to PV panels to help mitigate problems caused by shading and poor performance affecting the full array. Using a dual microinverter can help find a balance between the costs and benefits of otherwise connecting one per panel.
This model features two independent MPPTs, each with a large input current to accommodate high-power solar panels. Built for durability and subject to the APsystems suite of rigorous testing methods, the DS3 microinverter offers excellent performance and a high conversion efficiency.
Key features:
- Super-powerful microinverter to connect to two PV panels
- Maximum output power of 880VA
- Two input channels with independent MPPTs
- Large input current of 20A for each channel to adapt to large panels
- Components wrapped with silicone for waterproofing, thermal dissipation and reliability
- Compatible with apps and web-based portals for energy management and remote diagnosis
- Reactive Power Control function
- Encrypted ZigBee communication
- Integrated protection relay for safety
- Ingress protection: IP67
- Recommended PV module power range: 300Wp-620Wp+
- Peak efficiency: 97.3%
- Dimensions: 263mm (W) x 218mm (H) x 42.5/37mm (D)
- Weight: 3.1kg
- 12-year standard warranty
Datasheet
